10.1″ Intrinsically Safe Rugged Windows 10 Tablet 4G/LTE – I16H

I16H is a budget 10.1″ Intrinsically safe Rugged Tablet computer built with low powered yet powerful Intel CPU and GPU, carrying 4GB Ram and 64GB Rom, 4G/LTE, Gorilla Glass protected screen with resolution of 1280×800 pixels and 10000mAh removable battery will fulfill all your needs in the field. Other than Hazardous Areas (Ex, ic, IIC, T4, Gc) certification, this tablet carries IP65 and MIL-STD-810G certifications and is fully protected from drops, shock, water and dust.

Explosion proof rating: Ex, ic, IIC, T4, Gc | Zone 2, Div 3

Add-Ons

FP Scanner doesn't work with Windows Hello, it requires custom programming to make it work in your app

Barcode Scanner

Accessories

Product price
Additional options total:
Order total:

Description

Looking for an affordable Rugged Windows tablet ? You are in the right place than. Even though, tablets are getting more advanced every day, the outer body, display and internal components are still prone to damage from accidental drops or shock, liquid or damage. That’s why Rugged tablets exist on the market. Rugged tablets carry reinforced frames, watertight seals, hardened glass and shock absorbers. Thereby, your tablet will be safe from falls, vibrations, water, mud and dust.

  • IP65, MIL-STD-810G, CES 1m Drop tested.
  • Three Proof (Dust, Water, Shock)
  • Ex, ic, IIC, T4, Gc Certified
  • 3G/4G,Wifi 2.4G+5.8G,BT 4.0,GPS,BeiDou
  • 1D/2D Barcode Scanner, Fingerprint Scanner
          (Note: Fingerprint scanner cannot be used with Windows Hello)
  • High strengthened glass touch panel, gloves and wet hand touch
  • Built-in Compass / Gyroscope
  • Gigabit network interface
  • 10000mAh Removable battery

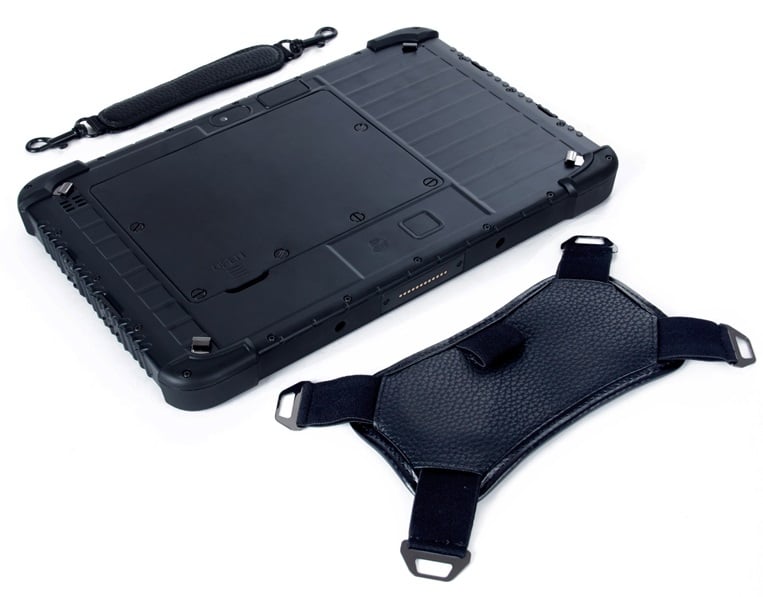

  • Accessories: Hand strap, Docking station, Vehicle mount, Car charger, Stylus pen, Shoulder straps, Travel charger.
  • Windows 10 Professional

With the available accessories this Rugged Tablet can be integrated into many different projects.

  • Use for reporting in hazardous areas
  • Install into Trucks, ATV, Boats and heavy equipment..
  • Hard mount in the warehouse for employee reporting.
  • Have it as field reporting tablet for field staff.
  • Endless integration possibilities.

Additional information

Application

Construction, Delivery, Exploration, Field Work, Forestry, Land Survey, Law Enforcement, Logistics, Mining, Oil & Gas, Outdoors, Property Management, Railway, Rescue, Retail, Security, Transportation, Warehouse

Safety Rating

Div 3, Ex, Gc, ic, IIC, t4, Zone 2

DESIGN



Operating System

Windows 10 IoT Enterprise

Color

Black

Dimentions

280 x 187 x 22 mm (11" x 7.36" x 0.86")

Weight

1.014kg (2.23lb)

DISPLAY



Screen Size

10.1"

Resolution

1280 x 800

Brightness

280Nits

Touch Panel

Capasitive, 10-point multi-touch
Corning® Gorilla® Glass,Gorilla 7H class, scratch resistant. 1.1mm thick, Glove touch support.

GENERAL



CPU

Intel Cherrytrail Z8350

CPU Type

Intel Cherrytrail Z8350 – 1.44Ghz-1.92GHz

GPU

Intel HD Graphic (Gen7)

RAM

4GB

ROM

64GB

Memory expansion

SDHC/SDXC (Max 128G)

Sensors

G-Sensor, Gyroscope

Notifications

Sound, LED prompt

Audio

Built-in 8Ω/0.8W speaker x 1

Earphones Jack

∮3.5mm

CAMERA



Rear Camera Type

Single camera

Rear Camera

5.0MP

Front Camera

2.0MP

Focus mode

Auto-Focus

POWER



Battery Capacity

3.7V / 10000mAh

Charging

AC100V ~ 240V、50Hz/60Hz output DC 5V/3A USA Standard CE approval

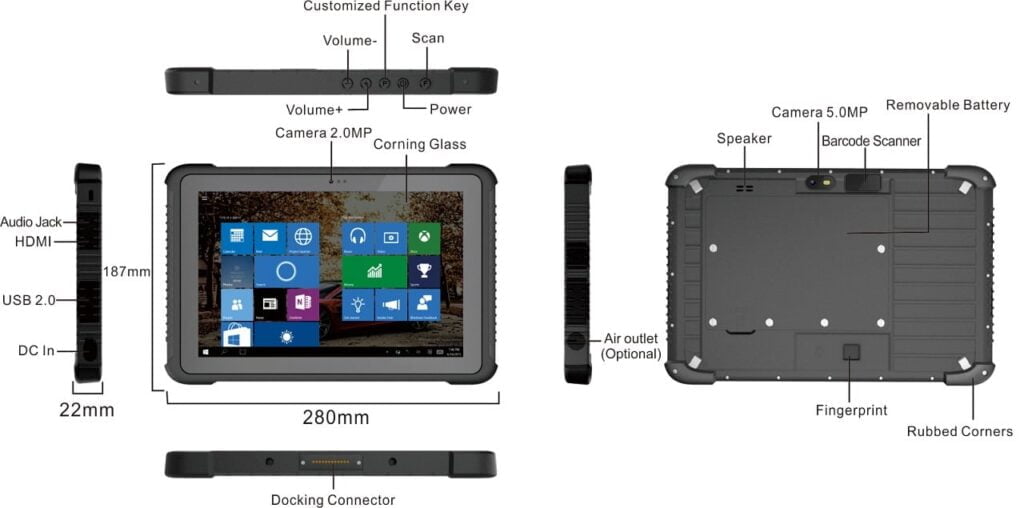

Interface

Power x1
Volume +/-
Trigger (barcode) x1
Programmable Function Key x1
Micro HDMI 1.4a x1
DC x1
12pin Pogo Pin x1
DB9 (RS232) ×1
RJ45 x1
USB 2.0 x1
MicroUSB x1

CONNECTIVITY



SIM Quantity

Single SIM

SIM Type

Micro SIM

WWAN

4G LTE ME936 LTE M.2
LTE: BI/B2/B3/B4/B5/B7/B8/B13/B17/B20
WCDMA/HSDPA/HSUPA/HSPA+: 850 MHz/900 MHz/1700 MHz
(AWS)/1900 MHz/2100 MHz
GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz

Intercom

N/A

Bluetooth

BT4.1 (BLE) class 1.5 transmission distance: 10m

WLAN

802.11 a/b/g/n (2.4G/5G dual band)

GPS

U-blox NEO-7, GLONASS, QZSS, GPS

NFC

NFC 13.56Mhz

Barcode Scanner (Optional)

1D/2D Barcode Scanner

FM Radio

N/A

DURABILITY



Working Temperature

-20°C to 50°C

Storage temperature

-30°C to 70°C

Humidity

5% ~ 95% Non-Condensing

Ingress protection

IP65

Certifications

IP-65
CE
MIL-STD-810G
Battery UN38.3
MSDS
IEC62133

MISCELLANEOUS



Package Contents

Hand splint
Carrying Handle
OTG Cable
Power Adapter
