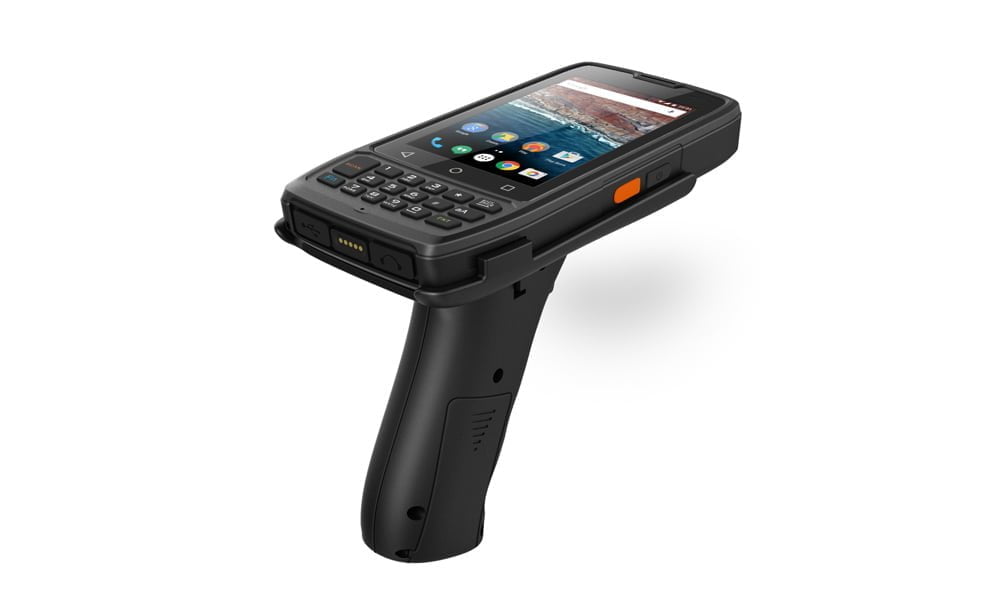

4″ Rugged Handheld Terminal EM-T42

Perfect fit for businesses needing a small and durable data terminal.

– 4″ 480*800 IPS
– Quad Core 1.3GHz CPU
– 2GB Ram, 16GB Rom
– Android 7.0
– WiFi (2.5G+5G),BT 4.2, 4G / 3G , GPS
 NFC,1D/2D Barcode Scanner
 IP65,MIL-STD-810G, CE, Battery: UN38.3, MSDS, IEC62133

Add-Ons

Product price
Additional options total:
Order total:
Category: SKU: EM-T42

Description

• Supports Android 8.1
• Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes
• Equipped with 4400mAh large capacity battery, the machine has a endurance of 7 hours
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, more accurate positioning
• Equipped with rear 8 million pixel auto focus camera
• Support 1D / 2D, NFC and other functional modules to meet the application needs of multiple industries







Additional information

Application

Delivery, Logistics, Retail, Transportation, Warehouse

GENERAL



CPU

Quad- core ARM® 1.45GHz

CPU Type

MT8735A Cortex-A53 MPCore TM

GPU

ARM MaliT720-MP3 450MHz

Operating System

Android 8.1

RAM

2GB LPDDR3

ROM

32GB

Memory expansion

SDHC/SDXC max64G

Sensors

E-Compass, Gyroscope, Light Sensor, Range Sensor

Buttons

HOME Key, Menu Key, Back Key, Barcode Trigger, Power, Volume +/-, 0-9 number keys、#key、*key、Fn key、back、ENT key、aA key

Notifications

Sound, vibration, LED prompt

Audio

Built-in 8Ω/0.7W Speaker
Mic: Sensitivity:-42db, output resistance 2.2kΩ

Dimentions

155.8mm x 72mm x 25mm

Weight (with battery)

292g

CAMERA



Rear Camera

8.0MP

Front Camera

2.0MP

Focus mode

Autofocus

Rear Flash

Single color LED flash

DISPLAY



Brightness

300Nit

Screen Size

4"

Resolution

IPS 480×800

Touch Panel

5 points Capacitive, G+FF, Rigidity: above 7H-Anti-scratch

POWER



Battery Capacity

Li-Po 3.8V/4400mAh (Removable)

Charging

AC 100V ~ 240V、50Hz/60Hz output DC 5V/2A

Interface

Micro USB 2.0, OTG

CONNECTIVITY



WWAN

CMCC 5M:
LTE 1/2/3/4/5/7/17/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8

Bluetooth

BT4.0 BLE

WLAN

WiFi 802.11 a/b/g/n 2.4G 5G

GP5

GPS; Capture sensitivity::-160 dBm;Cool Start Time:<60 seconds,Hot start time:<28seconds,frequency::0.25 Hz … 10 MHz (configurable)

NFC

* ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbit/s to 848 kbit/s
* ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s
* MIFARE reader encryption mechanism (MIFARE 1K/4K)
* Reading NFC Forum tags (MIFARE Ultralight, Jewel, FeliCa open tag, ISO/IEC 14443-4)
* Reading DESFire card
* ISO/IEC 15693/ICODE reader
* NFC-IP1 and NFC-IP2 protocols (ISO/IEC 18092 /ECMA 340 and ISO/IEC 21481/ECMA 352) 106 kbit/s to 424 kbit/s
* B’ and MIFARE card emulation

DURABILITY



Working Temperature

-10°C to 50°C

Storage temperature

-20 °C to 60 °C

Humidity

5%-95% (Non-Condensing)

Ingress protection

IP65

Drop test (Operating)

1.2m composite wood floors

Certifications

CE, NB, MIL-STD-810G, UN38.3, MSDS, IEC62133
