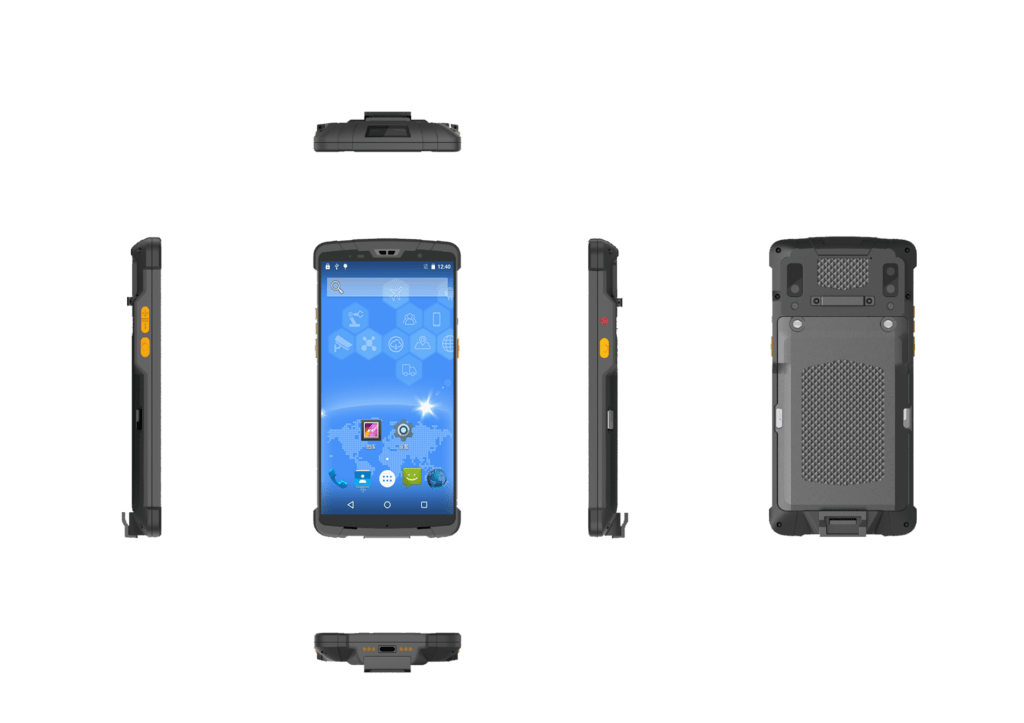

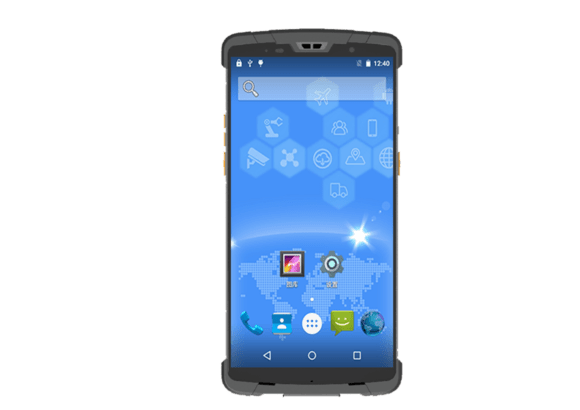

6″ Industrial Handheld Bar-code Scanner Terminal – Android 8.1 (EX)

IDO60SD was especially designed for logistics, warehouse, inventory and retail management. Powered by an Octa-core CPU with speed of up to 2.0GHz, 4GB Ram and 64GB storage, 6″ Sunlight readable FHD display and removable 6000mAh battery, this device has a great advantage in data processing speed over other devices on the market.

Explosion proof rating: Ex ib IIC T4 Gb | Zone 1, Div2

Product price
Additional options total:
Order total:

Description

Advantages of IDO60SD Android mobile terminal

  • Especially Design for Retail Management in Reading Clothing Tags
  • 4GB RAM, 64GB ROM Memory Capacity
  • Android 8.1 Operation System, 8-Core 2.0GHz CPU
  • Micro SD(TF) Card Slot Up to 128GB
  • Tiny and Light Handheld Terminal, the weight of only 250g, portable and easy to carry around.
  • 30° Convenient Scanning Angle and 4 Scanning Buttons for Quick Operation.
  • Manufactured by Foxconn, Ensuring Good Quality and Reasonable Lead Time
  • IP67 Industrial Class-Waterproof, Dustproof, Shockproof
  • CE/FCC/CCC/NCC/IP67, and 1.5M Drop Test (MIL-STD-810G) Certified
  • Zone 1, Div 2 – Ex ib IIC t4 Gb

Additional information

Safety Rating

Div2, Ex, Gb, ib, IIC, t4, Zone 1

Application

Logistics, Mining, Oil & Gas, Retail, Transportation, Warehouse

GENERAL



CPU

Octa-core 2.0GHz

Operating System

Android 8.1

RAM

4GB

ROM

64GB

Memory expansion

Micro SD (TF) card slot up to 128GB

Sensors

Accelerometer, Geomagnetic, Gyroscope, Light perception distance

Buttons

5 side buttons, 2 volume buttons, 2 function buttons (1 left and right), 1 power button

Notifications

Sound, vibration, LED prompt

Audio

Built-in speaker, Dual silicon mic noise reduction

Dimentions

160mm x 80mm x 15.8mm

Weight (with battery)

250g

CAMERA



Rear Camera

13MP

Front Camera

5MP

Focus mode

Autofocus, Front focus

Rear Flash

Single color LED flash

DISPLAY



Screen Size

6.0"

Resolution

FHD 2160×1080

Touch Panel

5-point capacitive touch screen

POWER



Battery Capacity

Li-ion 6000mAh (Removable)

Charging

PE fast charging, fully charged time< 4 hours

Interface

U5B-TypeC, Fast charge, OTG

CONNECTIVITY



WWAN

FDD-LTE B1/B3/B5/B7
TDD-LTE B38/B39//B40/B41
TD5CDMA B34/B39
WCDMA B1/B2/B5/B8
G5M B2/B3/B5/B8
CDMA1x CDMA2000 BCO

Bluetooth

BT4.0 BLE

WLAN

WiFi 802.11 a/b/g/n 2.4G 5G

GP5

GP5, GLONA55, BeiDou, AGP5, UBLOX

NFC

NFC (PN548) Support NFC Reader/writer, ISO14443-A/B/F, ISO18092, FeliCa, MIFARE, ISO15693

DURABILITY



Working Temperature

-20°C to 60°C

Storage temperature

-30°C to 80°C

Humidity

5%-95% (No condensation)

Ingress protection

IP67

Drop test (Operating)

1.5m to a concrete floor

Tumble Test

6 contact surfaces rolling for 1000 times/ 0.5M

ESD

±15kV Air Discharge, ±8kV Contact Discharge

Certifications

CE, FCC, CCC, NCC, IP67, MIL-STD-810G
