Application |

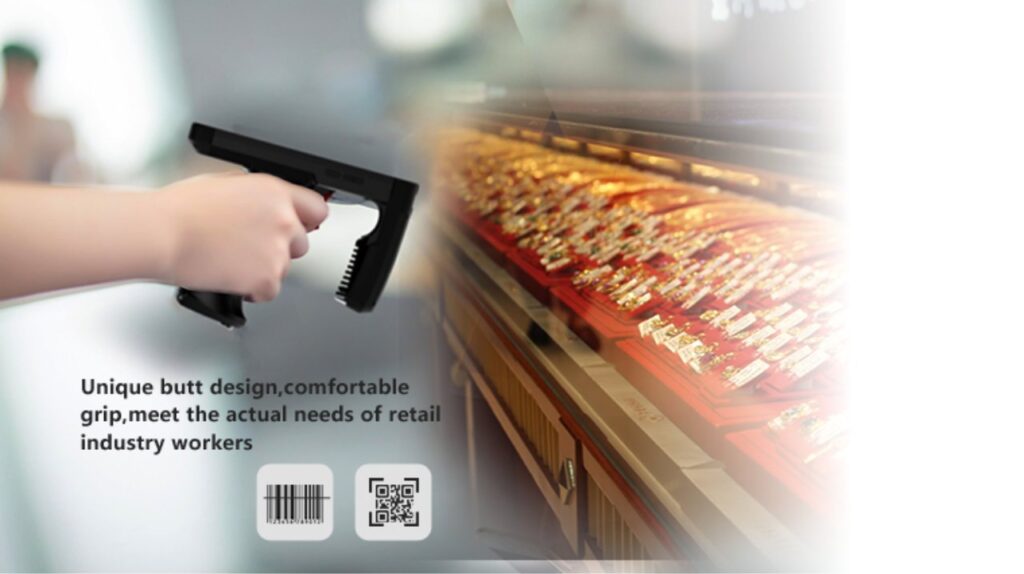

Logistics, Retail, Warehouse
|
GENERAL |
|

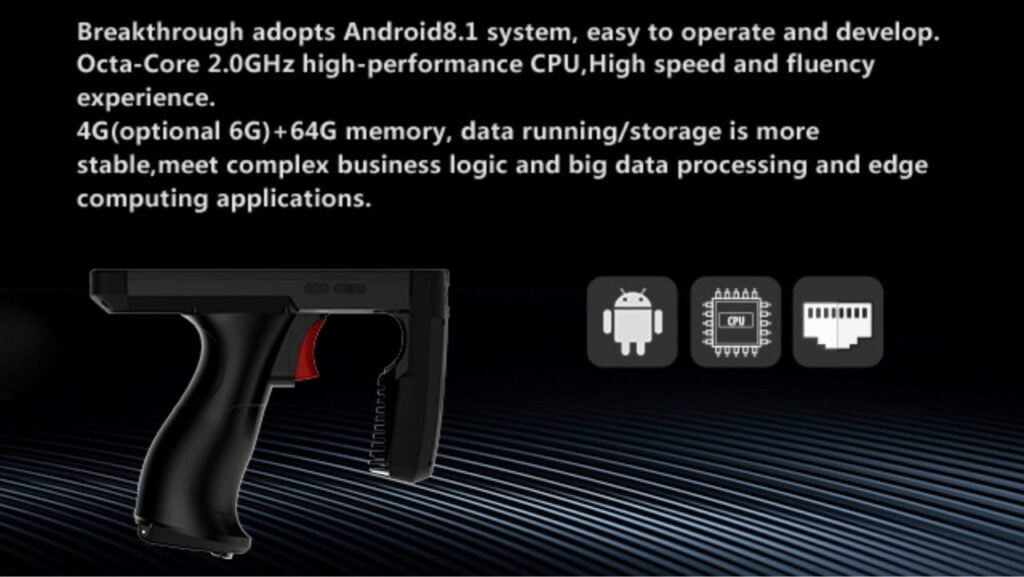

CPU |
Octa-core 2.0GHz
|
Operating System |
Android 8.1
|
RAM |
4GB
|
ROM |
32GB
|
Memory expansion |
Micro SD (TF) card slot up to 128GB
|
Sensors |
Accelerometer, Geomagnetic, Gyroscope, Light perception distance
|
Buttons |
5 side buttons, 2 volume buttons, 2 function buttons (1 left and right), 1 power button
|
Notifications |
Sound, vibration, LED prompt
|

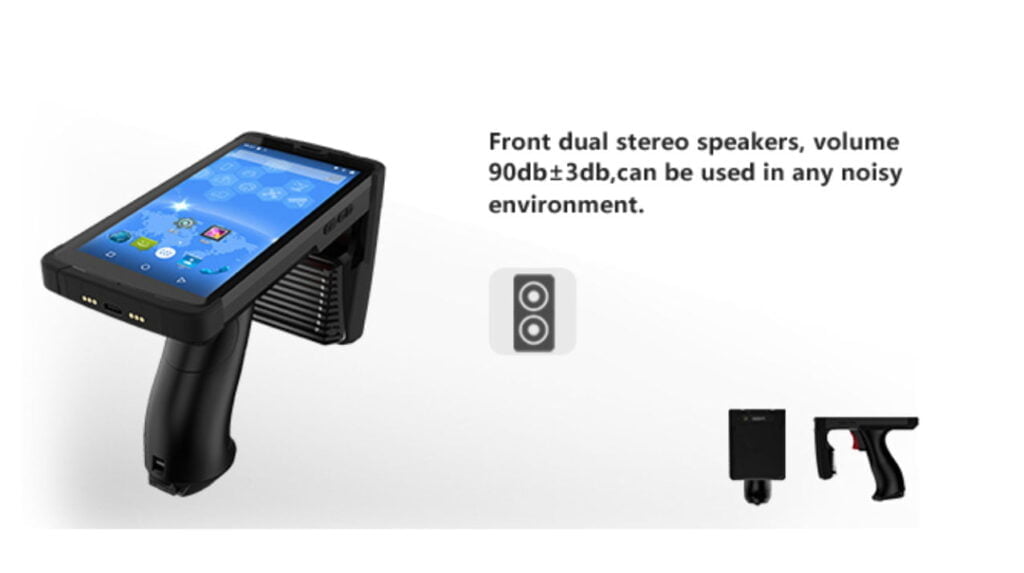

Audio |
Built-in speaker, Dual silicon mic noise reduction
|
Dimentions |
160mm x 80mm x 15.8mm (Pistol Grip lenght: 110mm)
|
Weight (with battery) |
600g
|

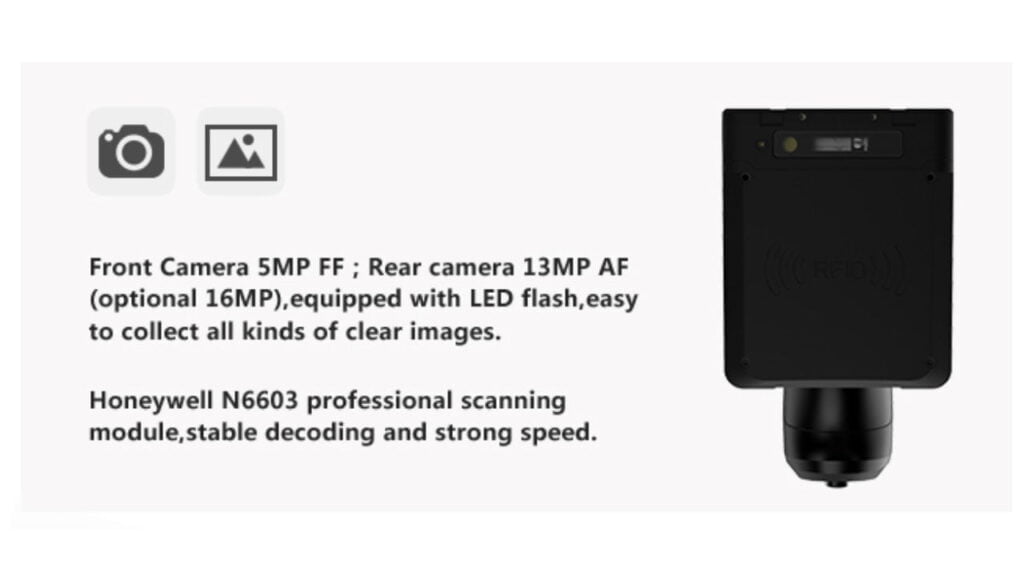

CAMERA |
|
Rear Camera |
13MP
|
Front Camera |
5MP
|
Focus mode |
Autofocus, Front focus
|
Rear Flash |
Single color LED flash
|
DISPLAY |
|

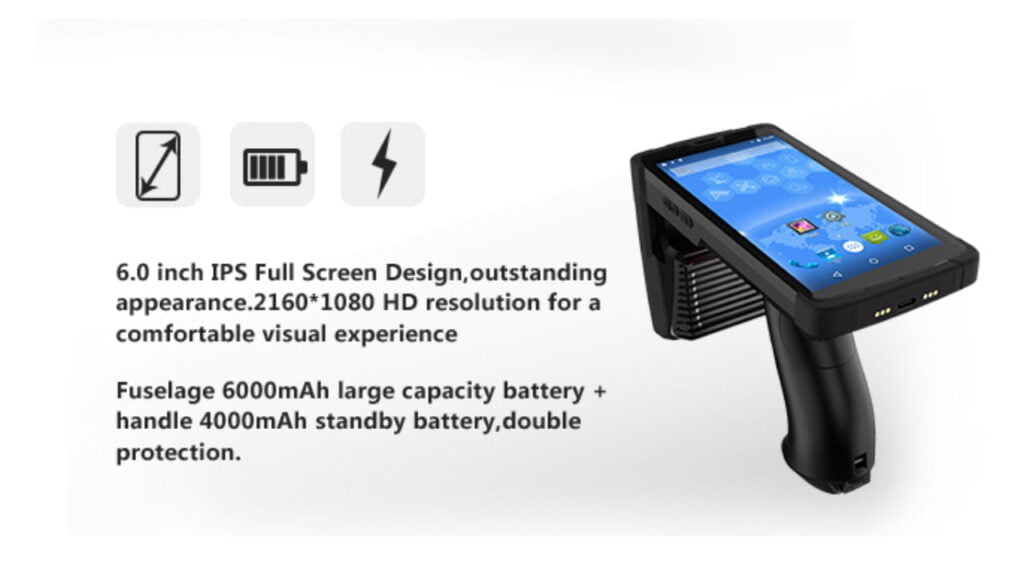

Screen Size |
6.0"
|
Resolution |
FHD 2160×1080
|
Touch Panel |
5-point capacitive touch screen
|
POWER |
|
Battery Capacity |
6000mAh + 4000mAh (Dual Battery)
|
Charging |
PE fast charging, fully charged time< 4 hours
|
Interface |
U5B-TypeC, Fast charge, OTG
|
CONNECTIVITY |
|
WWAN |
FDD-LTE B1/B3/B5/B7
TDD-LTE B38/B39//B40/B41
TD5CDMA B34/B39
WCDMA B1/B2/B5/B8
G5M B2/B3/B5/B8
CDMA1x CDMA2000 BCO
|
Bluetooth |
BT4.0 BLE
|
WLAN |
WiFi 802.11 a/b/g/n 2.4G 5G
|
GP5 |
GP5, GLONA55, BeiDou, AGP5, UBLOX
|

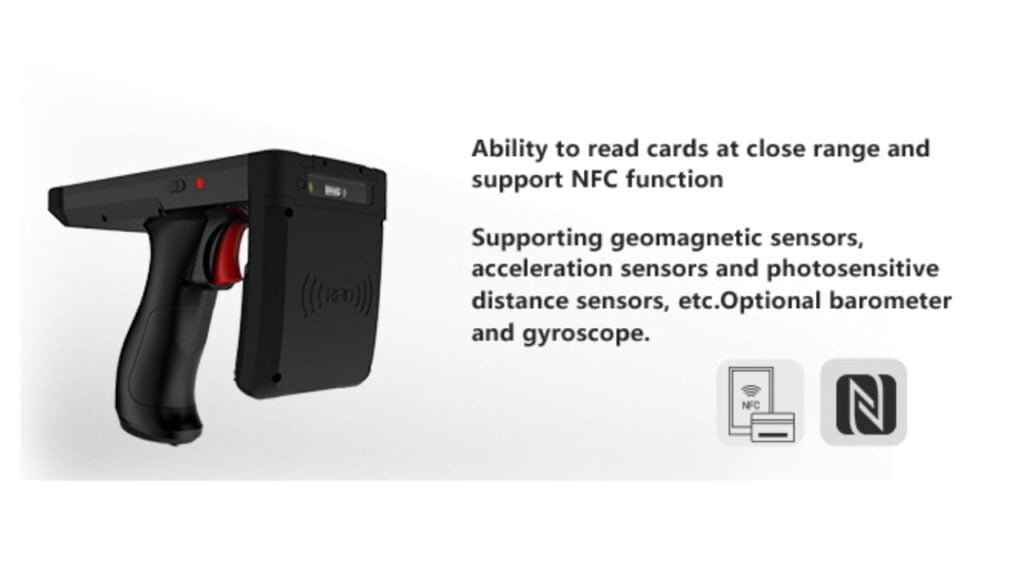

NFC |
NFC (PN548) Support NFC Reader/Writer, ISO14443-A/B/F, ISO18092, FeliCa, MIFARE, ISO15693
|

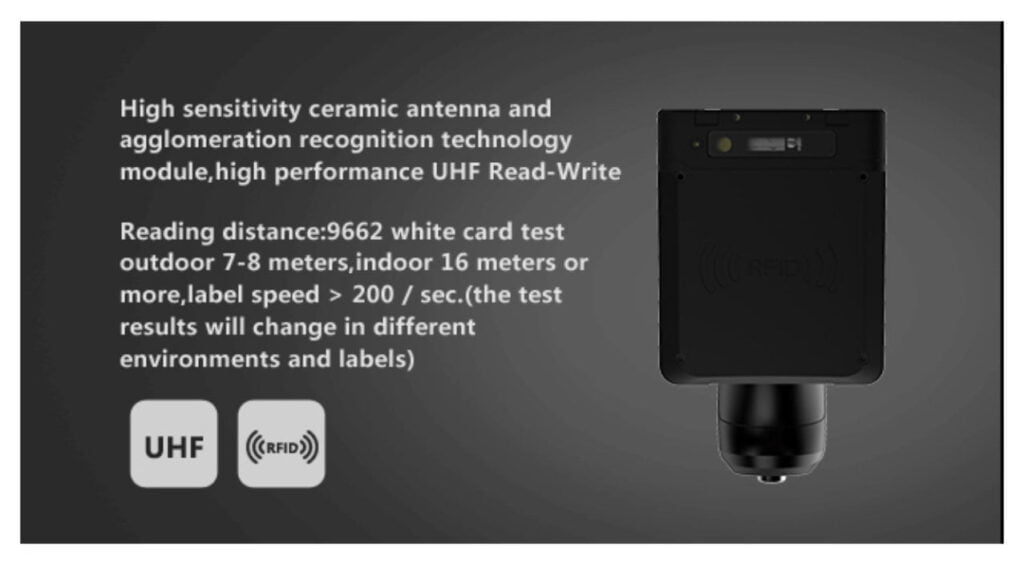

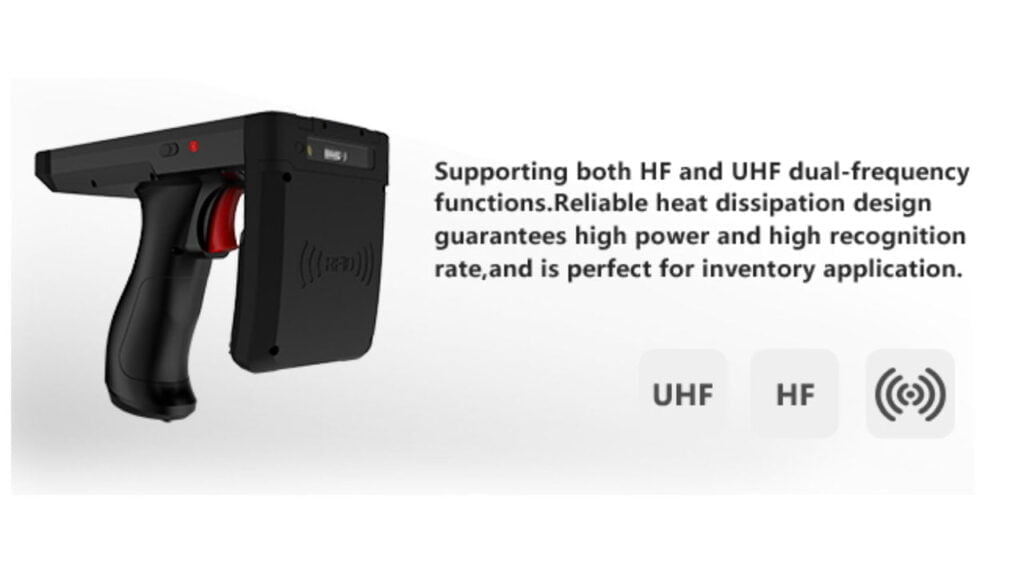

RFID |
Impinj R2000 860-960MHz ISO18000-6C (EPC Gen2) Reading Distance Max 5M
|
Barcode Scanner |
Honeywell N6603 1D/2D Barcode scanner
|
DURABILITY |
|

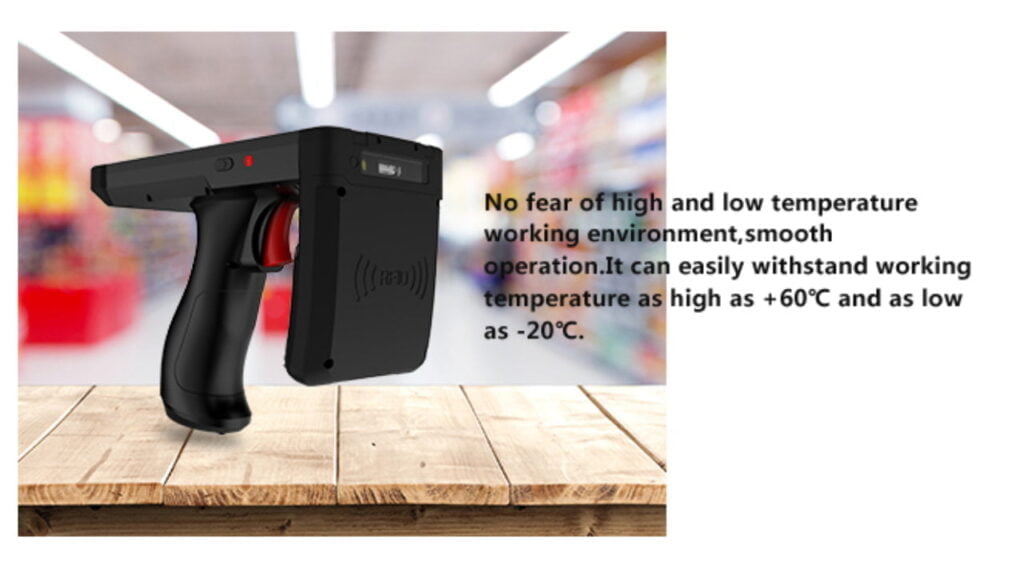

Working Temperature |
-20°C to 60°C
|
Storage temperature |
-30°C to 80°C
|
Humidity |
5%-95% (No condensation)
|
Ingress protection |
IP67
|

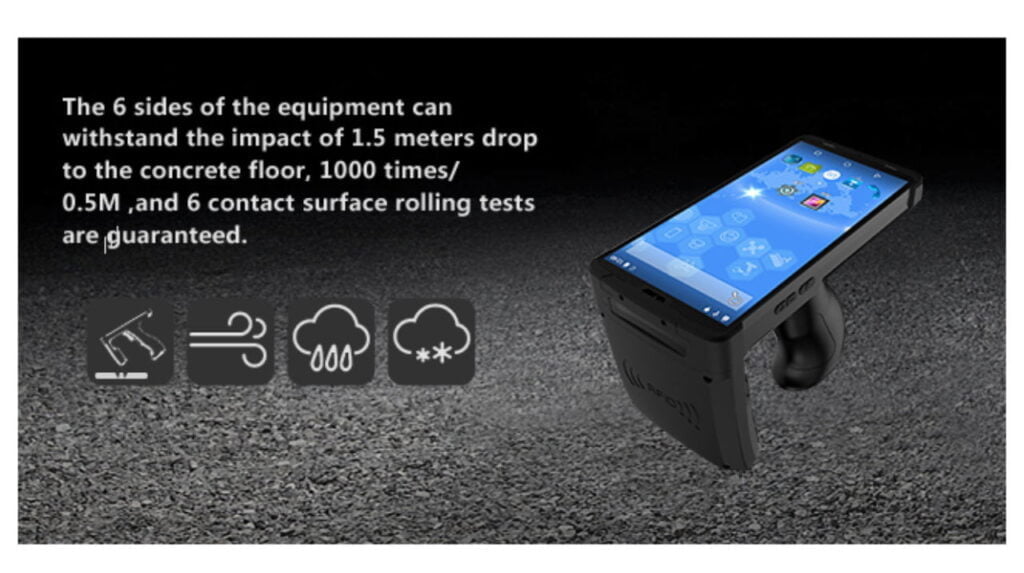

Drop test (Operating) |
1.5m to a concrete floor
|
Tumble Test |
6 contact surfaces rolling for 1000 times/ 0.5M
|
ESD |
±15kV Air Discharge, ±8kV Contact Discharge
|
Certifications |
CCC, CTA
|
