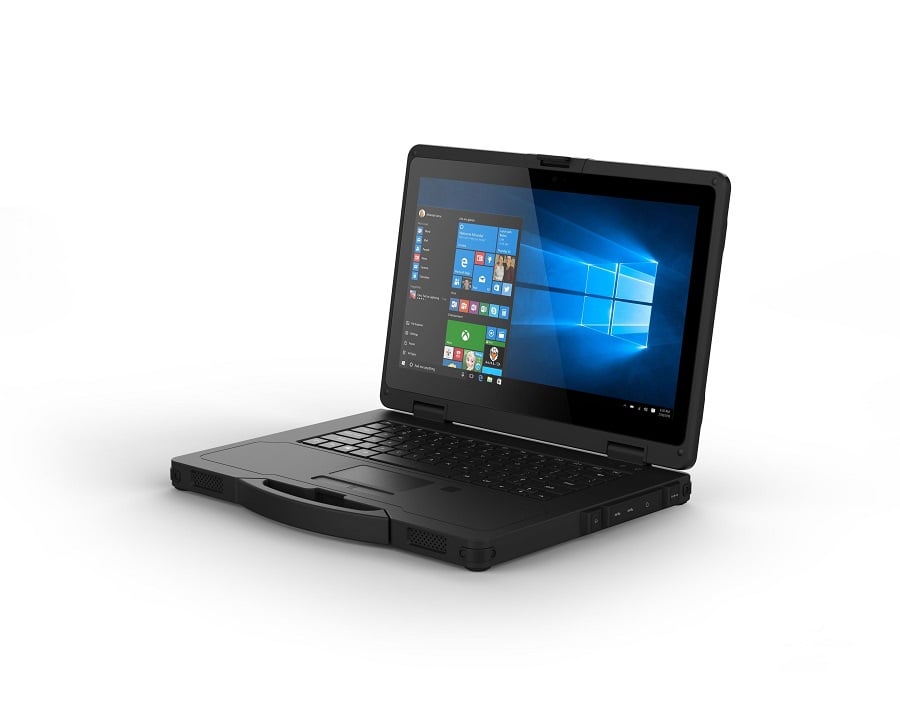

Fully Rugged 14 inch Laptop Computer – EM-X14U

X14 is a Lightweight, rugged military-grade laptop, equipped with an 8th generation Intel® Core ™ i5-8250U processor, plenty of different I/O ports, 14″ touchscreen and a 6200mAh battery, with IP65 level of protection and MIL-STD-810G certification, this laptop only weighs 2.85kg (6.2lb)

Product price
Additional options total:
Order total:
Category: SKU: EM-X14U

Description

Rugged computer equipment is gaining popularity with terrible speed. More and more companies switching their field computer equipment to Rugged to save costs in long term usage. X14 is high quality, Military grade piece of tech that is designed to help companies utilize power of Intel’s new 8th generation CPU in the field works without worrying to damage the machine and lose precious data.

Product features:

  • Intel® Core ™ i5-8250U CPU, Built-in TPM chip.
  • Windows 10 IOT or Professional.
  • Plenty of I/O interfaces
  • 3G/4G,Ublox GPS high accuracy positioning and Dual band WI-FI.
  • IP65, water and dust proof.
  • MIL-STD-810G Impact and shock proof
  • Dual, hot-swappable 6200mAh battery.
  • High intensity Corning® Gorilla® Glass touch panel, supporting handwriting input.

This lightweight military grade Rugged Laptop computer was especially designed to work in environments where consumer laptops won’t survive for very long time. With powerful i5 processor and 8GB of Ram this laptop will easily get the job done.

Additional information

Application

Construction, Delivery, Exploration, Field Work, Forestry, Land Survey, Law Enforcement, Logistics, Outdoors, Property Management, Railway, Rescue, Retail, Security, Transportation, Warehouse

DESIGN



Operating System

Windows 10 Pro 64bit

Color

Black

Dimentions

305x205x16.5mm

Weight

2.85kg

DISPLAY



Screen Size

14"

Resolution

1920×1080 FHD

Brightness

700Nits

Touch Panel (Optional)

10 point touch capacitive,G+G,Rigidity: 7H up, Anti-scratch

GENERAL



CPU

Intel® Core™ i5-8250U, Intel® Core™ i7-8550U

CPU Type

8th Generation KBL-R Intel® Core™ i5-8250U (Processor 4cores 8 threads, processor base frequency 1.60 GHz, maximum frequency 3.40 GHz)

or

4cores 8 threads, processor base frequency 1.60 GHz, maximum frequency 4.0 GHz

GPU

Intel® UHD Graphics 620

RAM

16GB, 8GB

ROM

128GB, 256GB, 512GB

Security

Built-in TPM Security Chip SLB9665T2.0

Sensors

Fingerprint

Audio

Built-in 8Ω/1W x2

Earphones Jack

×2 Internal Digit MIC, ∮3.5mm

CAMERA



Front Camera

2.0MP

POWER



Battery Capacity

Li-Ion 2000mHA/7.4V, Li-Ion 6300mHA/7.4V

Charging

100~240V Input 19V3.42A/65W output USA standard CE approval

Interface

POGO PIN*1
DC 19V 3.42A power jack
HDMI x1 (type-A)
SD Card x1
SIM Card x1
DB9 (RS232) ×1
RJ45 x2(10/100/1000M Self-adaption)
Kensington x1

CONNECTIVITY



SIM Quantity

Single SIM

SIM Type

Micro SIM

WWAN

EC25-AU Mini PCIe
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8

Bluetooth

BT4.2

WLAN

WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual frequency WIFI /intel 3165 / Max Speed 433 Mbps

GPS

U-blox NEO-7, Beidou+GPS

NFC

NXP NFC 13.56MHz ,support ISO/IEC 下14443A/14443B/15693/18092/mifare ,Card reading distance:4cm

FM Radio

N/A

DURABILITY



Working Temperature

-20°C to 60°C

Storage temperature

-30 °C to 70 °C

Humidity

5%-95% (Non-Condensing)

Ingress protection

IP65

Certifications

FCC,CE,RoHS,CCC,MIL-STD-810G

MISCELLANEOUS



Package Contents

1 x Laptop
1 x User Manual
1 x Charger
